Solid Tyre Wheel

Disc Wheel Rim & Press On Solid Wheels for Industrial Forklift

#disc wheel rim#, #industrial forklift rim#, #Press-On Solid Wheel#, POS wheel, hubbed wheel, hubless wheel, heavy-duty material handling wheel
Online orders

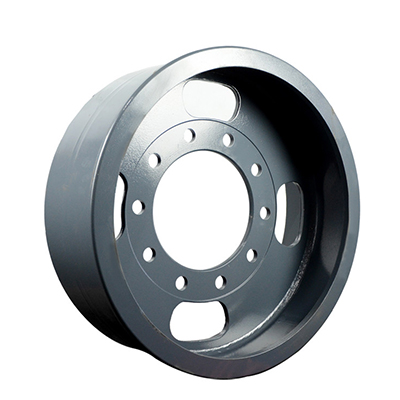

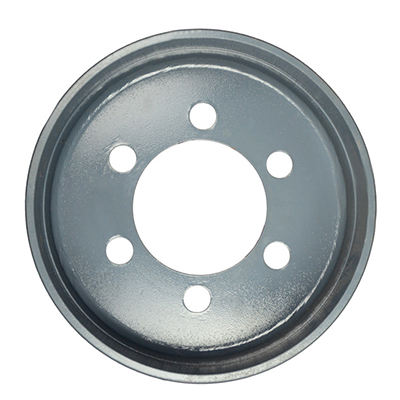

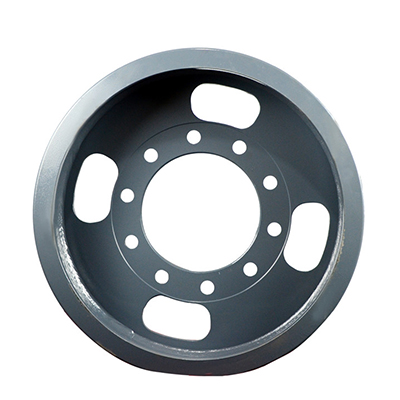

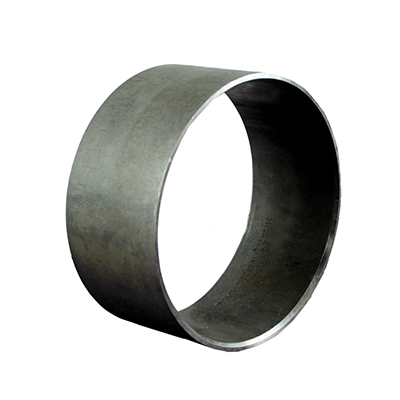

Solid Tyre Wheel/Bogie Disc Wheel Rim

1. Massive Specs & Deep OEM Customization

56+ standard sizes, with diameters 200mm–1530mm, thicknesses 8mm–40mm and maximum width 800mm. Beyond standard ranges, we engineer custom complex-profile and heavy-duty structural rims tailored for industrial forklifts and heavy material handling equipment.

2. Proven R&D & Advanced Manufacturing

Backed by 20+ years of design expertise and a 10-member R&D team. We adopt state-of-the-art descaling, precision welding and advanced surface treatment lines to deliver outstanding structural integrity and long-term anti-corrosion performance.

3. Precision Production & Extended Tire Life

Custom dies and professional molding equipment ensure strict dimensional accuracy. Our axial runout outperforms industry standards, minimizing vibration, improving operational stability and greatly extending tire service life to reduce your total cost of ownership (TCO).

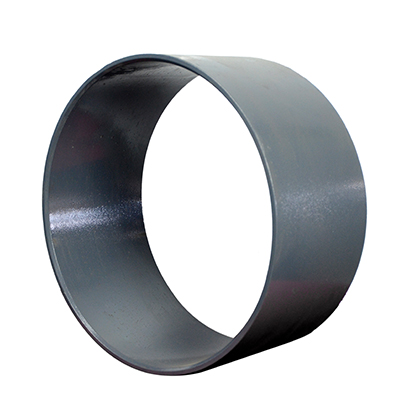

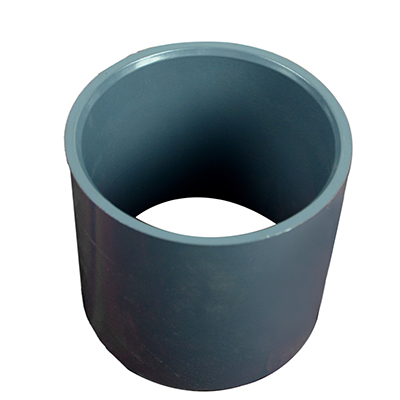

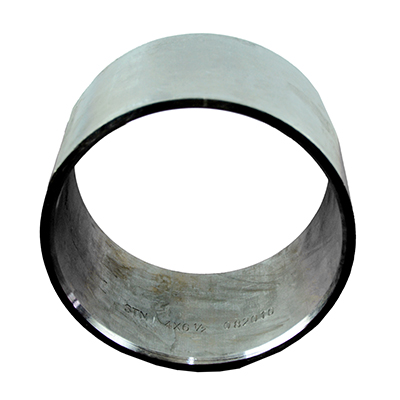

4. Bespoke Press-On Solid (POS) Wheels

Custom manufactured to your exact technical drawings for high-load, low-speed operations. Available in hubbed and hubless designs for seamless integration with various forklift fleets.

No.	Item	Specification
1	Product name	Industrial Disc Wheel and Press on Solid Wheel
2	Certification	IATF16949/ISO9001/ISO14001/GB/T28001/GB/T19580
3	Type	Solid Wheel
4	Raw material	Q355/S355JR/ASTM grade50
5	Welding feature	Flash welding
6	Color	Yellow or as your requirement
7	Surface Treatment	E-coating
8	Painting brand	Valspar
9	Capacity	100000 Set/Sets per Month
10	Sales mode	Factory sales directly

Specification list of solid tyre disc wheel rim

Size（inch）	Thickness	Width	Inside Dia	Min-Dia	Max-Dia
Width*Dia	(±0.5)mm	（0/-0.5）mm	mm	mm	mm
7×12 1/8	8/10	177.8	307.34	307.137	307.543
8×12 1/8	8/10	203.2	307.34	307.137	307.543
9×12 1/8	8/10	228.6	307.34	307.137	307.543
5×14	8/10	127	354.97	354.762	355.168
6×14	10/12	152.4	354.97	354.762	355.168
7×14	10/12	177.8	354.97	354.762	355.168
9×14	10/12	228.6	354.97	354.762	355.168
12×14	10/12	304.8	354.97	354.762	355.168
5×15	10/12	127	380.14	379.933	380.34
6×15	10/12	152.4	380.14	379.933	380.34
7×15	10/12	177.8	380.14	379.933	380.34
8×15	10/12	203.2	380.14	379.933	380.34
9×15	10/12	228.6	380.14	379.933	380.34
12×15	10/12	304.8	380.14	379.933	380.34
5×16	10/12	127	405.54	405.333	405.74
6×16	10/12	152.4	405.54	405.333	405.74
7×16	10/12	177.8	405.54	405.333	405.74
8×16	10/12	203.2	405.54	405.333	405.74
9×16	10/12	228.6	405.54	405.333	405.74
10×16	10/12	254	405.54	405.333	405.74
12×16	10/12	304.8	405.54	405.333	405.74
14×16	10/12	355.6	405.54	405.333	405.74
16×16	10/12	406.4	405.54	405.333	405.74
6×17 3/4	10/12	152.4	449.99	449.783	450.19
7×17 3/4	10/12	177.8	449.99	449.783	450.19
8×17 3/4	10/12	203.2	449.99	449.783	450.19
9×17 3/4	10/12	228.6	449.99	449.783	450.19
10×17 3/4	10/12	254	449.99	449.783	450.19
12×17 3/4	10/12	304.8	449.99	449.783	450.19
14×17 3/4	10/12	355.6	449.99	449.783	450.19
5×20	10/12	127	506.88	506.679	507.086
10×22	10/12	254	557.68	557.479	557.886
12×22	10/12	304.8	557.68	557.479	557.886
14×22	10/12	355.6	557.68	557.479	557.886
15×22	10/12	381	557.68	557.479	557.886
16×22	10/12	406.4	557.68	557.479	557.886
10×30	10/12	254	760.35	760.146	760.552
12×30	10/12	304.8	760.35	760.146	760.552
14×30	10/12	355.6	760.35	760.146	760.552
16×30	10/12	406.4	760.35	760.146	760.552

Specification list of press on wheel rim

Number	Specification	Number	Specification	Number	Specification
1	8x20-3/8"	27	53×8×17	54	68×10×24
2	9.5x17.75-3/8"	28	54×4×18	55	69x11x28
3	10.5x20-3/8"	29	54×7×14	56	69x15x28
4	10x20-3/8"	30	54x8x26	57	69x17x28
5	22×7×17-3/4	31	55×5×17	58	71×11×28
6	22×9×16	32	55×7×18	59	71×12×14
7	31x5x7	33	55×10×18	60	73×12×31
8	31x5x9	34	55×12×8	61	73×13×28
9	31×6×10	35	56×8×14	62	73×14×21
10	30x5x16	36	57×8.5×16.5	63	73×18×31
11	33x6x8	37	58x7x14	64	75×11×31
12	33x6x10	38	59x9x18	65	75×13×31
13	33x6x11	39	59x9x20.5	66	78×17×21
14	36x7x11	40	59x12x20	67	80x15x31
15	42x6x18	41	61×8×21	68	80×18×35
16	43x6x14.5	42	62x7x21	69	10×16.5
17	45x6x14	43	62x9x17	70	12×16.5
18	46x6x18	4	62x9x20.5	71	12.5×20
19	48x7x30	45	62×13×21	72	14×17.5
20	49×6×14	47	63×6×26	73	15×25
21	51x8x13	48	63×11×18	74	17.5×25
22	52x6x16	49	66×9×21	75	20.5×25
23	52x6x24	50	66×9×24	76	23.5×25
24	52x9x14	51	66x10x20	77	26.5×25
25	52x10x33	52	66x10x35	78	29.5×25
26	53x5x14	53	66×16×24
