STEEL WHEEL

Mining Machinery Wheel 35-63"

Premium 25-63 Inch Multi-Piece Wheel Rims for Mining Trucks | Compatible with CATERPILLAR, KOMATSU, BELAZ, LIEBHERR, TEREX.
Online orders

Mining Truck Multi-Piece Wheel Rims 25-63 Inch | Compatible with CATERPILLAR, KOMATSU, VOLVO

Caterpillar Belaz Komatsu Heavy Duty Mining Truck Wheel Rim

1. Supply Capacity & Compatible Equipment Brands

We provide premium multi-piece wheel rims (25–63 inches) for mining trucks, featuring easy-to-replace 3-piece, 5-piece and 7-piece designs plus matching accessories.

Our rim parts fit major heavy machinery models perfectly.

They are fully compatible with mainstream global OEM brands such as CATERPILLAR, KOMATSU, VOLVO, BELAZ, LIEBHERR and TEREX.

2. Common Rim Specifications

Light & Medium-Duty (Below 100 tons): 25-inch series, covering models 13/2.5-25 and 19.5-25, compatible with 1800R25 and 23.5R25 tires.

Heavy-Duty (100–300 tons): 29–51 inch series, including standard models 27.00-29, 30.00-51 and 36.00R51.

Extra-Heavy-Duty (Over 300 tons): 57–63 inch series, including mainstream models 40.00R57, 53/80R63 and 59/80R63.

Product details

Product name	25-35 inch Mining Wheel Rim and Components
Standard	TRA/ETRTO/JATMA/IATF16949/ISO9001/ISO14001
Welding	Flash Welding
Structure	Tube or Tubeless 3pcs 5pcs 7pcs Heavy-duty Mining Truck Wheel Rim
Color	CAT Yellow or OEM
Raw material	Q355/S355JR/ASTM Grade 50
Surface Treat	Surface coating, E-coating Available
Painting Brand	OEM available
Supply Ability	100000 Set/month
Orienitation	Aftermarket service station, Repair station, Support station, Construction contractor, Machinery OEM

*Hot Sale Product for your reference*
Diameter	Wheel Size	TU/TL	Structure	Tire Size	Application Vehicle
35”	35-15.00/3.0	TL	5/7PCS	21.00R35	Mining Dump truck 75450, 75453, 75454 demountable wheel rim
35”	35-17.00/3.5	TL	5/7PCS	24.00R35	CAT775 off-highway-rock-truck easy change wheel rim KOM 75B payloader easy change wheel rim, HD605 Rigid dump truck easy change wheel rim assembly, TR45 dump truck easy change wheel rim assembly and components
35”	35-27.00/3.5	TL	5/7PCS	33.25R35	Rigid dump truck easy change wheel rim assembly
35”	35-31.00/4.0	TL	5/7PCS	37.25R35	Caterpillar 631G-637G Wheel Tractor Scrapers demountable wheel rim assembly
39”	39-28.00/4.0	TL	5/7PCS	33.5R39	Rigid dump truck demountable wheel rim assembly
39”	39-32.00/4.0	TL	5/7PCS	40/65R39	Articulated dump truck demountable wheel rim assembly
39”	39-32.00/4.5	TL	5/7PCS	41.25/70R39	LH625E underground loader wheel rim, CAT 990 wheel loader wheel rim assembly
45”	45-36.00/4.5	TL	5/7PCS	45/65R45	CAT 992K wheel loader multi piece wheel rim, Kom WA800-3/WA900-3 wheel loader 5pcs wheel rim
49”	49-15.00/3.0	TL	5/7PCS	21R49	wheel loader 5pcs wheel rim
49”	49-17.00/3.5	TL	5/7PCS	24R40	CAT 772 off-high way truck wheel rim, CAT773 OTR steel wheel rim
49”	49-19.50/4.0	TL	5/7PCS	27.00R49	CAT 777 Rigid dump truck wheel rim, Kom 785-7 Articulated dump truck wheel rim
49”	49-22.00/3.5	TL	5/7PCS	31/80R49	TR100 Mining dump truck wheel rim, EH1700-3 mining quarry truck wheel rim, Kom HD785-7 Rigid dump truck demountable wheel rim
51”	51-22.00/4.5	TL	5/7PCS	30.00R51	Mining dump truck wheel rim
51”	51-24.00/5.0	TL	5/7PCS	33.00R51	CAT 785 776 Mining Haul truck wheel rim; CAT993K Wheel loader wheel rim, KOM 1500-7 Rigid Dump truck wheel rim
51”	51-26.00/5.0	TL	5/7PCS	36.00R51	CAT 789C Mining truck wheel rim; Cat 784 Cat795 off high way haul truck; KOM630e Giant mining dump truck wheel rim;
51”	51-40.00/4.5	TL	5/7PCS	50/60R51	CAT 785D Mining Haul truck wheel rim, KOM HD1500-7 Mechanic OTR wheel rim
57”	57-27.00/6.0	TL	5/7PCS	37.00R57	CAT 789 Mining Haul truck wheel rim, KOM 630E, KOM 730E Giant Mining Haul truck wheel rim; EH3500AC-3 Haul quarry wheel rim
57”	57-29.00/6.0	TL	5/7PCS	40.00R57	CAT 793 Mining Haul truck wheel rim , CAT 798 Mining Haul truck wheel rim, KOM 830E Mining Haul truck wheel rim
57”	57-32.00/5.0	TL	5/7PCS	44/80R57	Mining Haul truck wheel rim
57”	57-32.00/6.0	TL	5/7PCS	46/90R57	EH4000AC-3 BELAZ-7531 Mining Haul truck wheel rim
57”	57-32.00/6.5	TL	5/7PCS	48/95R57	KOM 830E Mining Haul truck wheel rim
57”	57-34.00/6.0	TL	5/7PCS	50/90R57	Mining Haul truck wheel rim
57”	57-36.00/6.0	TL	5/7PCS	50/80R57	KOM 860E, CAT 994 Mining Haul truck wheel rim
57”	57-44.00/5.0	TL	5/7PCS	55/80R57	Mining Haul truck wheel rim
57”	57-44.00/6.0	TL	5/7PCS	55.5/80R57	CAT 994 Mining Haul truck wheel rim
57”	57-47.00/5.0	TL	5/7PCS	60/85R57	Mining Haul truck wheel rim
57”	57-47.00/6.0	TL	5/7PCS	58/85R57	KOM WA 1200-6 Giant Mining loader wheel rim
63”	63-36.00/5.0	TL	5/7PCS	53/80R63	KOM930e Mining Haul truck wheel rim ; CAT797 ADT wheel rim, EH5000AC-3 Mining Haul truck demountable wheel rim
63”	63-41.00/5.0	TL	5/7PCS	55/80-63	KOM 960E ADT wheel rim, CAT797Mining Haul truck wheel rim
63”	63-44.00/5.0	TL	5/7PCS	58/80R63 59/80R63	CAT 797F, CAT795F Mining Haul truck wheel rim, T264,T282C,T284 Mining Haul truck wheel rim

3. Rim Structure Types

The 5-piece multi-part rim serves as the mainstream structure, composed of a rim base, a lock ring, a seat ring and two bead retainer rings. It delivers outstanding advantages of easy assembly and disassembly, paired with superior load-bearing performance.

Partial extra-large rims (51–63 inches) adopt a 7-piece structural design to meet the matching requirements of ultra-large tires and heavy-load mining operations.

4. Load Capacity Range

Light-Duty: 30–80 tons, suitable for small and medium-sized mines and general engineering construction scenarios.

Medium-Duty: 100–240 tons, the standard configuration for mainstream open-pit mining vehicles.

Heavy-Duty: 280–363 tons, designed as core supporting parts for large-scale open-pit mining equipment.

Extra-Heavy-Duty: 400–450 tons, applicable to super-large open-pit mines, matching ultra-heavy mining trucks such as the BELAZ 75710 and XCMG XDE440.

Mining Machinery Wheel 35-63

5. RFQ:

Why Choose Rarlong Machinery for Mining Truck Rims

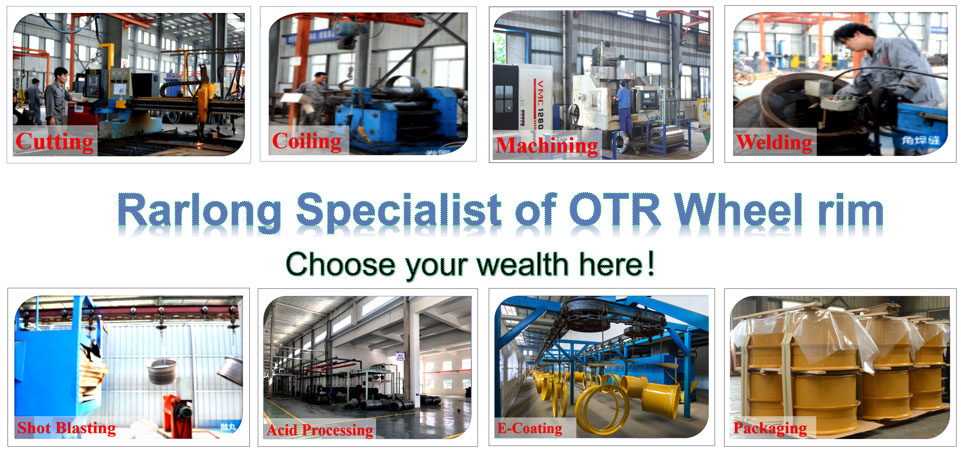

Rarlong Machinery specializes in manufacturing and exporting OTR wheel rim assemblies for earthmovers, graders, excavators, dump trucks and other construction machinery.

1). Global Sales & OEM Expertise

Products exported to over 30 countries. 60% of business covers OEM and wheel replacement markets across North America, Europe, Africa and Oceania.

2). Ample Stock & Fast Shipment

Large regular inventory supports quick delivery of wheel rims and assemblies. We are a qualified supplier for top global brands including CAT, KOMATSU and VOLVO, serving machinery makers, after-sales outlets, mining and construction partners worldwide.

3). Rich Drawings & Custom OEM Service

600+ standard rim drawings for original off-road equipment. Custom OEM solutions are available based on your technical drawings.

4). 24/7 After-sales Service

Four professional teams provide round-the-clock after-sales support.

With 24+ years of industry experience, we have earned trust from loyal and new global customers.
