Installation Procedure for Tubeless Tire of 5-Piece Wheel Rim

1. Wheel Rim Preparation

Clean the wheel rim and all accessories. Inspect for cracks and deformation. Replace the O-ring and valve stem with new ones, and apply a thin layer of dedicated lubricant on contact surfaces.

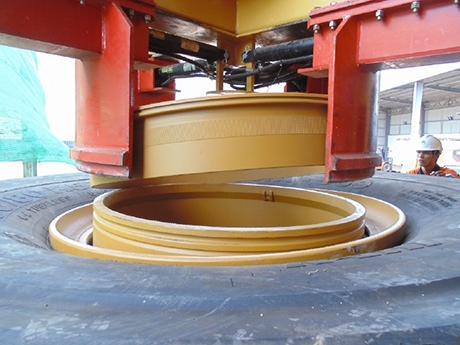

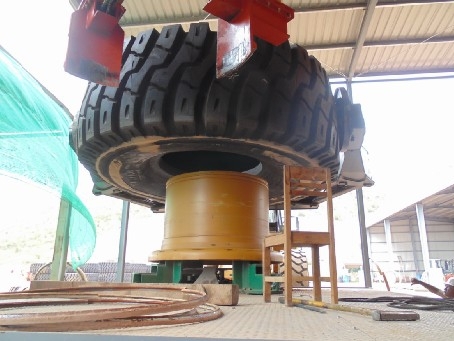

2. Tire Press-Fitting

Align the tire with the wheel rim and press it in evenly to ensure tight fit of tire beads.

3. Accessory Assembly

Mount the upper flange, install and secure the retaining ring. Fit the O-ring without distortion, then fully lock the snap ring into position.

4. Inflation & Leakage Test

Place the tire in a safety guard area. Inflate slowly to standard pressure. Check all sealing points with soapy water for air leakage and recheck pressure after standing.
